PAV19BMFS2F6B | GREATECS
Pushbutton, 1 pole, silver, illuminated (green), 5 A/250 V, mounting Ø 19 mm, IP65, PAV19BMFS2F6B
Unit Price (€ / pc.)
21.5628 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
862.51 € *
Price list
Quantity
Price per unit*
40 pcs.
21.5628 €
120 pcs.
20.2895 €
200 pcs.
19.0281 €
*incl. VAT plus shipping costs
Subject to prior sale

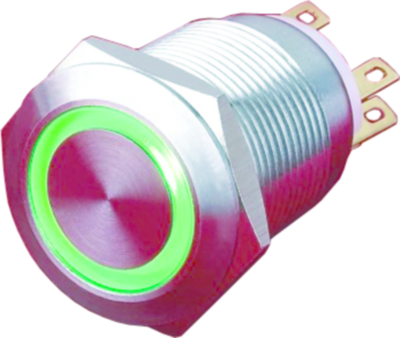

Pushbutton, PAV19BMFS2F6B, GREATECS
Pushbutton, vandal-proof, momentary, 1NO1NC, flat actuator, solder termination, stainless steel, LED ring light 6V green, engraving "START", Protection class: IP 65 / KI09, Mounting dimension: 19 mm, Switching capacity: 250 VAC, Switching current: 5 A, Actuating force: 4 N, Actuating travel: 2.5 mm, Material: Stainless steel.
Technical specifications
| Vandal-proof | Yes | |
| Printed | Yes | |
| Installation diameter | 19 mm | |
| contact surface | silver-plated | |
| Breaking capacity | 5 A/250 V | |
| Actuator colour | silver | |
| Farbe der Beleuchtung | green | |
| Pin number | 1 pole | |
| Design | round | |
| illuminated | Yes | |
| Connection | solder connection | |
| Protection class | IP65 | |
| Latching switching function | groping |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
