PAV16NFS1G6N | GREATECS

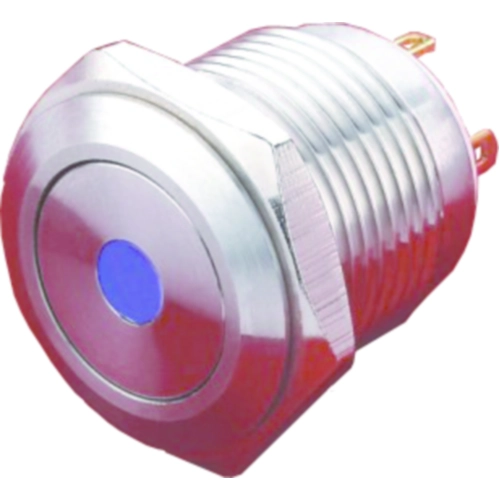

Vandal-proof pushbutton, 1 pole, silver, illuminated  (blue), 2 A/36 V, mounting Ø 16 mm, IP65, PAV16NFS1G6N

Order No.: 12G3109
EAN: 4099889190991
MPN:
PAV16NFS1G6N
Series: PAV16
PAV16NFS1G6N GREATECS Pushbutton Switches
Image may differ
Unit Price (€ / pc.)
9.4010 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
376.04 € *
Price list
Quantity
Price per unit*
40 pcs.
9.4010 €
120 pcs.
8.8417 €
200 pcs.
8.2943 €
*incl. VAT plus shipping costs
Subject to prior sale

Pushbutton switch, PAV16NFS1G6N, GREATECS

Pushbutton switch, vandal-proof, momentary, 1NO, flat actuator, solder connection, stainless steel, LED spot lighting 6V blue, Protection class: IP 65/ IK08, installation dimension: 16 mm, Switching capacity: 36 VDC, Switching current: 2 A, Actuating force: 4N, Actuating travel: 1.5 mm, Material: stainless steel

Technical specifications
Filter Property Value
contact surface silver-plated
Installation diameter 16 mm
Latching switching function groping
Design round
Actuator colour silver
Connection solder connection
Protection class IP65
Vandal-proof Yes
Breaking capacity 2 A/36 V
Pin number 1 pole
Printed No
illuminated Yes
Farbe der Beleuchtung blue
Logistics
Property Value
Country of origin CN
Customs tariff number 85365019
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
