PAS223PMOWC05T | GREATECS

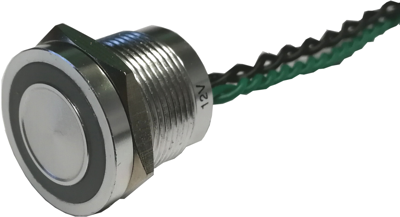

Piezo switch, On-Off, mounting Ø 22 mm, illuminated, red, IP68, PAS223PMOWC05T
Unit Price (€ / pc.)
36.5687 € *
Standard delivery time from the manufacturer is: 12 Weeks
Piezo switch, PAS223PMOWC05T, GREATECS
Piezo switch, vandal-proof, Mounting dimension: 22 mm, sensing, NO, 3 mm flat actuator, 30 cm cable connection, LED narrow ring illumination 5V red, Protection class: IP 68, Switching capacity: 24 VAC/VDC, Switching current: 200 mA, Life cycle: 50.000.000.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 24 V | |
| Connection | stranded wires | |
| Lighting voltage | 5 VDC | |
| Actuator | flat, 3 mm | |
| Farbe der Beleuchtung | red | |
| Latching switching function | On-Off | |
| Switching Voltage (DC) | 24 V | |
| Degree of protection (IP) | IP68 | |
| Color of body | natural | |
| illuminated | Yes | |
| switching current | 200 mA | |
| Installation diameter | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
