PROFITEST PVSUN | Gossen Metrawatt

Installation tester, LCD display, CAT III 1000 V, Gossen Metrawatt PROFITEST PVSUN

Order No.: 21K5340
EAN: 4012932123241
MPN:
PROFITEST PVSUN
M360C
Series: PROFiTEST PV

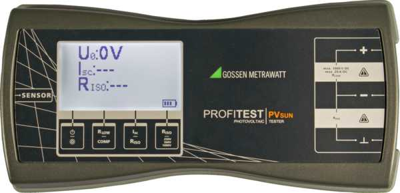

PROFITEST PVSUN Gossen Metrawatt VDE testers, Installation testers, Insulation testers Image 1

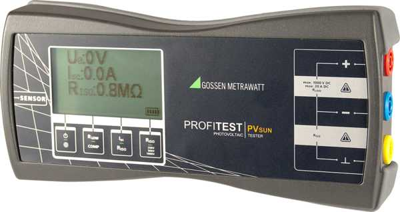

PROFITEST PVSUN Gossen Metrawatt VDE testers, Installation testers, Insulation testers Image 2
Image may differ
Unit Price (€ / pc.)
1,606.50 € *
Available: 0 pcs.
Available in 7 Days: 24 pcs.
Leadtime: 4 Weeks **
Total Price:
1,606.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,606.50 €

Test instrument, M360C, Gossen Metrawatt

With the PROFITEST PVsun, all required electrical safety tests on photovoltaic systems can be carried out easily, safely and in compliance with standards according to DIN EN 62446.

The tester is suitable for testing PV modules and strings up to max. 1,000 V / 20 A. In addition to the insulation measurement, the polarity test, the ground fault test, the continuity of the protective conductor can also be tested. The tester is characterized by its ergonomic design and easy handling at a weight of only 500g.

Features

  • Voltage measurement: 0 ... 1000 V DC
  • Current measurement (direct): 0 ... 20 A DC
  • Insulation resistance measurement, measuring range: 0 ... 20 MO, test voltages: 250 V / 500 V / 1000 V DC
  • Earth fault measurement: 0 ... 1000 V DC
Technical specifications
Insulation resistance Max 20 MΩ
Surge voltage category CAT III 1000 V
Max measured value DC voltage 370 V
Product type installation tester
Max measured value AC voltage 264 V
Version LCD display
Degree of protection (IP) IP42
Batteries AA
Logistics
Customs tariff number 90303100
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
