PROFITEST PRIME | Gossen Metrawatt
Testing device for electrical systems and machines, M516G
Unit Price (€ / pc.)
5,462.10 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

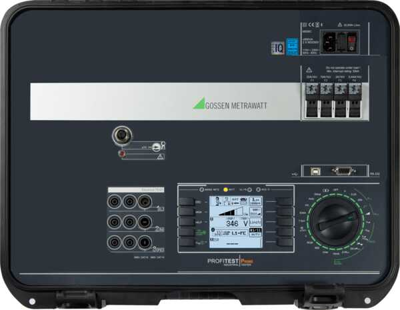

Test instrument, PROFITEST PRIME, Gossen Metrawatt
The PROFITEST PRIME is a test instrument for testing the effectiveness of protective measures in electrical installations per IEC 60364-6 and DIN EN 50110-1, machines and systems per DIN EN 60204-1 and DIN EN 61439-1, PV systems per DIN EN 62446 and electric charging stations per IEC 61851-1.
Features
- Testing of RCMs and IMDs
- Measurement of leakage and differential current
- Measurement of temperature and humidity
- Mains and battery operation (with limited functionality)
- Bluetooth and USB interfaces
- Intuitive operation
- Efficient work
- Standards-compliant testing
- Legally secure documentation
Technical specifications
| Batteries | 3 x Lithium | |
| Measurement Standard | VDE 0100/600 | |
| Product type | Gerätetester | |
| Degree of protection (IP) | IP40/IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90303200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
