PROFITEST MPRO | Gossen Metrawatt

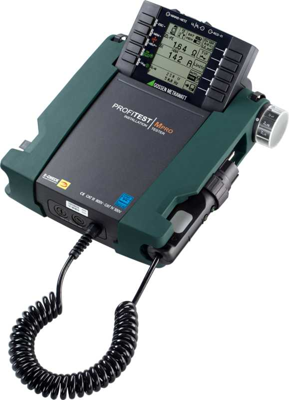

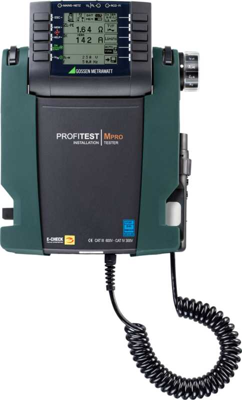

Installation tester, LCD display, CAT III 600 V, CAT IV 300 V, Gossen Metrawatt PROFITEST MPRO

Measuring and testing device, M520N, Gossen Metrawatt
The PROFITEST PRO offers all measuring and testing functions for testing the effectiveness of protective measures on fixed electrical installations after completion, repair, expansion and on the occasion of a repeat test (DGUV regulation 3). The PROFITEST PRO offers all measuring and testing functions for testing the effectiveness of protective measures on fixed electrical installations - both with pre-defined and optionally with programmable test sequences that are required according to the test standards according to IEC 60364-6 (DIN VDE 0100-600) and EN 50110-1 (DIN VDE 0105-100). Measurement category 300 V CAT IV / 600 V CAT III. Tests of the effectiveness of protective measures on fixed electrical installations according to IEC 60364-6 (DIN VDE 0100-600), EN 50110-1 (DIN VDE 0105-100) as well as earth measurements.
Filter | Property | Value |
---|---|---|
Version | LCD display | |
Product type | installation tester | |
Degree of protection (IP) | IP40 | |
Insulation resistance Min | 50 kΩ | |
Batteries | AA | |
Surge voltage category | CAT III 600 V, CAT IV 300 V | |
Max measured value AC voltage | 600 V | |
Insulation resistance Max | 499 MΩ |
Property | Value |
---|---|
Customs tariff number | 90303200 |
Country of origin | DE |
Property | Value |
---|---|
Date of RoHS guidelines | 3/31/15 |
RoHS conform | Yes |
SVHC free | Yes |
