PROFITEST H+E CABLE | Gossen Metrawatt

Installation tester kit, digital display, CAT II 300 V, Gossen Metrawatt PROFITEST H+E CABLE

Order No.: 24K2418
EAN: 4012932135237
MPN:
PROFITEST H+E CABLE
M525K
Series: PROFITEST

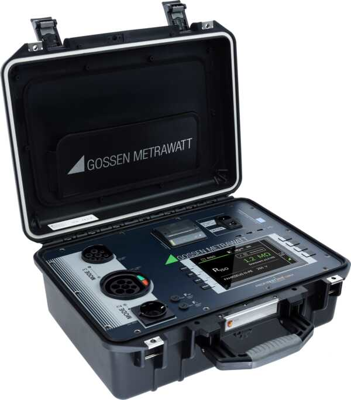

PROFITEST H+E CABLE Gossen Metrawatt VDE testers, Installation testers, Insulation testers Image 1

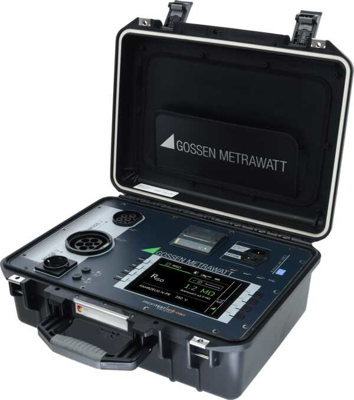

PROFITEST H+E CABLE Gossen Metrawatt VDE testers, Installation testers, Insulation testers Image 2

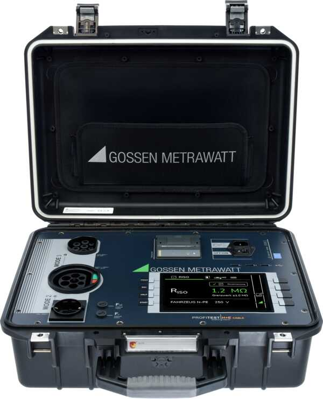

PROFITEST H+E CABLE Gossen Metrawatt VDE testers, Installation testers, Insulation testers Image 3
Image may differ
Unit Price (€ / pc.)
5,532.31 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
5,532.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5,532.31 €

Tester for electric charging cables, M525K, Gossen Metrawatt

The PROFiTEST H+E CABLE device is used for standardised testing of charging cables for electric vehicles. It is designed for testing charging cables mode 2 (IC-CPD) and charging cables mode 3.

Features

  • Automatic test sequence according to manufacturer specifications
  • Manufacturer database
  • Individual tests by qualified electricians, password-protected
  • Connection of a keyboard, barcode and QR code reader for input
  • Direct connection of charging cables mode 2 / 3
  • Testing of 1-phase and 3-phase charging cables
  • The test can be carried out directly at any location

Applications

  • RLO Low-resistance continuity of the protective conductor
  • RISO Insulation resistance
  • RCD AC tripping current and time
  • DC sensor test 6 mA tripping time/current n - Simulation L/N/PE

Scope of delivery

  • 1 x PROFITEST H+E CABLE
  • 1 x Adapter Schuko-CEE 32 A
  • 1 x Adapter Schuko-CEE 16 A
  • 1 x Adapter Schuko-Camping CEE 16 A blue
  • 1 x Mains connection cable
  • 1 x Roll of thermal paper for printer
  • 1 x Factory calibration certificate
  • 1 x Quick Start Guide DE, GB
Technical specifications
Degree of protection (IP) IP40/IP67
Surge voltage category CAT II 300 V
Insulation resistance Min 0.1 MΩ
Product type installation tester kit
Version digital display
Insulation resistance Max 19.99 MΩ
Logistics
Customs tariff number 90303100
Country of origin RS
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
