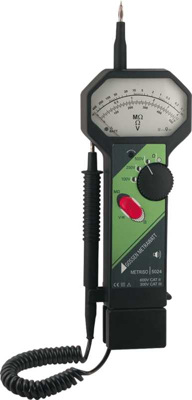

METRISO 5024 | Gossen Metrawatt
Insulation tester, LED illuminated scale, VDE 0413, Gossen Metrawatt METRISO 5024
Unit Price (€ / pc.)
916.30 € *
Available in 7 Days: 29 pcs. - if ordered today
Analogue insulation tester, M540E, Gossen Metrawatt
The analogue insulation measuring instrument for quick two-hand operation according to VDE 0413 part 1/2/4 and voltmeter
- Insulation measurements with measuring voltages 100, 250, 500 V
- With analogue display
- Low-resistance measurements of protective conductor and potential conductor resistances, continuity
- Buzzer as alarm function for faulty or unreliable measurements
- Flashing LED for the same purpose
- Fluctuating pointer as ultima ratio of warning functions
- With bag
Ordering information:
- 1 Insulation and resistance measuring device
- 1 Carrier bag
- 1 spare fuse
- 1 Instruction manual
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Measurement Standard | VDE 0413 | |
| Product type | insulation tester | |
| Degree of protection (IP) | IP52 | |
| Insulation resistance Max | 400 MΩ | |
| Version | LED illuminated scale | |
| Batteries | 4 x AA | |
| Insulation resistance Min | 0.1 MΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 90303320 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
