METRATESTER 5+ | Gossen Metrawatt

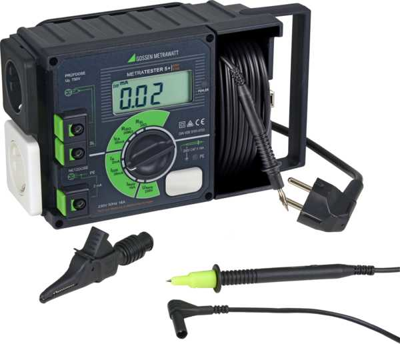

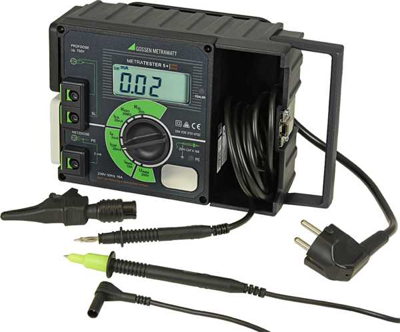

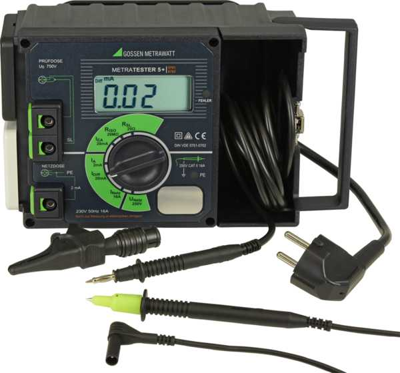

Test device, LCD display, VDE 0701/0702, Gossen Metrawatt METRATESTER 5+
Unit Price (€ / pc.)
1,178.10 € *
Standard delivery time from the manufacturer is: 4 Weeks
Testing device, M700D, Gossen Metrawatt
Device for testing the electrical safety of electrical equipment according to DIN VDE 0701-0702
- Insulation resistance 0 ... 19,99 M Ohm
- differential current 0.01 ... 19.99 mA
- Protective conductor resistance 0 ... 19,99 Ohm
- Spare leakage current 0 ... 19.99 mA
- Voltage-free 0 ... 1.999 mA
- Mains voltage 207 V ... 253 V
- Consumer current 0 ... 16,00 A
- Dimensions WxHxD 190 x 140 x 95 mm
- Weight approx. 1,3 kg
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | test instrument | |
| Measurement Standard | VDE 0701/0702 | |
| Degree of protection (IP) | IP20 | |
| Version | LCD display |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90303100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
