GEOHM C | Gossen Metrawatt

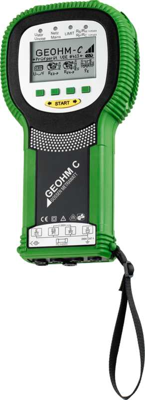

Grounding meter, with signal lamps, CAT II 250 V, Gossen Metrawatt GEOHM C
This item is no longer available.
As an alternative, we recommend the following item:
Ground resistance and low resistance meter, TFT display, CAT III 600 V, CAT IV 300 V, Gossen Metrawatt METRALINE EARTH
Order No.: 24K2367
Manufacturer: Gossen Metrawatt
per pc. 1,219.8214 € *
Earthing meter, M590A, Gossen Metrawatt
Compact, handy, menu-driven earth resistance measuring instrument for 3- and 4-wire measurements. Continuous monitoring of interference voltages and auxiliary earth and probe resistance with signaling when permissible limit values are exceeded.
Complete display of all necessary values on large dot matrix display or warning via 4 LEDs. Very understandable and simple operation by means of 4 keys.
Features
- Ground resistance measurement in 5 ranges up to 50 kOhm
- Voltage measurement 10... 250 V
- Frequency measurement 45...200 Hz
- Battery/accumulator control and self-test
- Built-in memory with IrDA interface
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | grounding meter | |
| Version | with signal lamps | |
| Surge voltage category | CAT II 250 V | |
| Max measured value DC voltage | 250 V | |
| Max measured value AC voltage | 300 V | |
| Degree of protection (IP) | IP54 | |
| Batteries | C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
