METRAHIT T-COM PLUS | Gossen Metrawatt
TRMS digital multimeter METRAHIT T-COM PLUS, 1 A(DC), 1 A(AC), 600 VDC, 600 VAC, 30 nF to 300 µF, CAT II 600 V, CAT III 300 V
Unit Price (€ / pc.)
1,611.26 € *
Standard delivery time from the manufacturer is: 4 Weeks
Cable Multimeter, M246S, Gossen Metrawatt

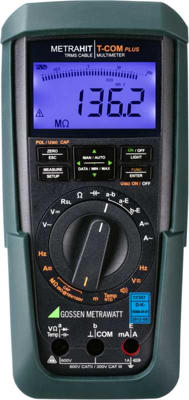

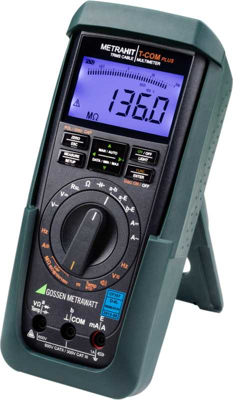

The METRAHIT T-COM PLUS cable multimeter is a portable, robust and field-proof measuring instrument.
It is used to perform measurements to determine sources of faults in cable systems. It measures all cable and system-relevant parameters such as voltage, current, resistance, insulation and loop resistance, capacitance and cable length.
Features
- Insulation resistance measurement (test voltage 10 and 100 V) with simultaneous external voltage detection (at 100 V) and polarity change for diode test
- Interference resistant capacitance measurement and cable length measurement
- Galvanic signature analysis
- Line symmetry test by fast switching
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surge voltage category | CAT II 600 V, CAT III 300 V | |
| Version | digital multimeter | |
| max. measured current value (DC) | 1 A | |
| max. measured current value (AC) | 1 A | |
| max. resistance range | 30 MΩ | |
| max. voltage measuring range (AC) | 600 V | |
| max. voltage measuring range (DC) | 600 V | |
| TRMS possible | Yes | |
| Capacity range | 30 nF to 300 µF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
