METRAHIT IM XTRA BT | Gossen Metrawatt
TRMS multi- and milliohmmeter METRAHIT IM XTRA BT, 30 nF to 300 µF, CAT III 1000 V, CAT IV 600 V
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2,907.4913 € *
Standard delivery time from the manufacturer is: 2 Weeks

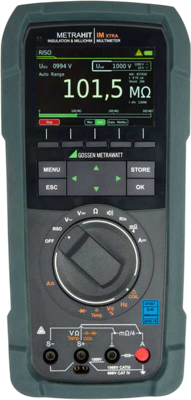

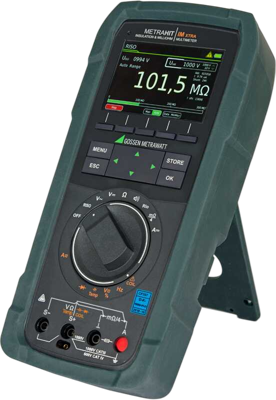

Multimeter, METRAHIT IM XTRA BT, Gossen Metrawatt
The METRAHIT IM XTRA BT is multimeter, milliohmmeter and data logger. Industrial applications can be found in production and testing, as well as for service in the fields of electrical engineering, machinery manufacturing and automotive engineering. An all-in-one instrument with 30,000 digits: milliohmmeter, multimeter, data logger, insulation resistance tester and coil tester. Compact and multifunctional for use in the field: can be used advantageously in aircraft cockpits as well as in other constricted spaces, which would otherwise require the use of several individual instruments.
Features
- Safety-relevant tests for electric devices, drives and installations with a single field instrument
- Testing of high-voltage systems in accordance with UN ECE R100
- Insulation resistance measurement
- Rlow installation testing
- Bonding test and equipotential bonding measurement, e.g. on aircraft outer skins (lightning protection, wick test)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | multi/milliohmmeter | |
| TRMS possible | Yes | |
| Capacity range | 30 nF to 300 µF | |
| max. resistance range | 3000 MΩ | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V | |
| Display Digits | 30000 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
