METRAHIT COIL | Gossen Metrawatt

TRMS digital multimeter METRAHIT COIL, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 30 nF to 300 μF, CAT II 1000 V, CAT III 600 V

Order No.: 21K5317
EAN: 4012932125764
MPN:
METRAHIT COIL
M246C
Series: METRAHIT

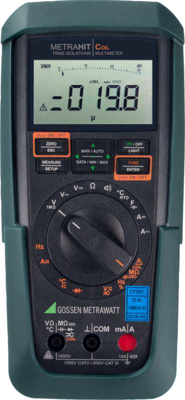

METRAHIT COIL Gossen Metrawatt Multimeters Image 1

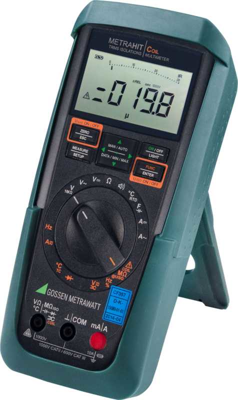

METRAHIT COIL Gossen Metrawatt Multimeters Image 2
Image may differ
Unit Price (€ / pc.)
1,661.24 € *
Available in 7 Days: 1 pcs. - if ordered today
Total Price:
1,661.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,661.24 €

TRMS multimeter, motor winding and insulation tester, M246C, Gossen Metrawatt

The METRAHIT COIL is a digital multimeter with insulation measurement and short circuit detection. It is robust and reliable for professional use and presents itself in an attractive design with housings made of impact-resistant plastic and technically state of the art.

METRAHIT COIL is a portable and robust measuring instrument, especially for servicing electric machines and vehicles, e.g. generators, industrial trucks or forklifts. It is field-proof and has an internal mains-independent power supply.

Features

  • TRMS multimeter with ± 30,000 digits resolution for voltage, current, temperature, etc.
  • Insulation resistance measurement with 50 to 1000 V test voltage and external voltage detection.
  • Wind fault detection with 1,000 V test voltage (surge test)
Technical specifications
Filter Property Value
TRMS possible Yes
max. voltage measuring range (AC) 1000 V
max. measured current value (AC) 10 A
max. measured current value (DC) 10 A
max. voltage measuring range (DC) 1000 V
Surge voltage category CAT II 1000 V, CAT III 600 V
Version digital multimeter
max. resistance range 30 MΩ
Capacity range 30 nF to 300 μF
Logistics
Property Value
Customs tariff number 90303200
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
