METRACAL MC | Gossen Metrawatt
TRMS digital multimeter METRACAL MC, 300 mA(DC), 300 mA(AC), 300 VDC, 300 VAC, 30 nF to 300 μF
Unit Price (€ / pc.)
2,811.9700 € *
Standard delivery time from the manufacturer is: 4 Weeks

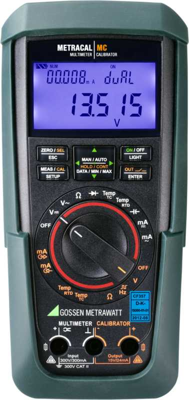

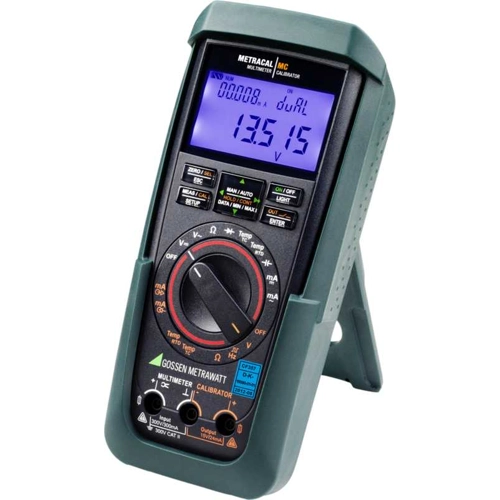

Multimeter and calibrator, M245A, Gossen Metrawatt
The METRACAL MC is both a multimeter and a calibrator. It simulates sensor conditions at the input of a transformer or transmitter or isolation amplifier, simultaneously measures the galvanically isolated signal output and stores the results on site.
The METRACAL MC streamlines measurement, calibration and revision work in the chemical process, laboratory and development, in the production area of electronic transmitters and in the adjustment and calibration of metrological components.
Features
- 2 IN ONE Universal calibrator/simultaor and TRMS multimeter
- Dual mode - simultaneous transmission and measurement
- Transfer of measurement and calibration results to a PC for recording and creation of a calibration protocol with METRAwin 90-2 software
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | calibrator | |
| TRMS possible | Yes | |
| max. voltage measuring range (DC) | 300 V | |
| max. voltage measuring range (AC) | 300 V | |
| Display Digits | 30000 | |
| max. measured current value (AC) | 300 mA | |
| Capacity range | 30 nF to 300 μF | |
| max. measured current value (DC) | 300 mA | |
| max. resistance range | 30 MΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
