Z109C | Gossen Metrawatt

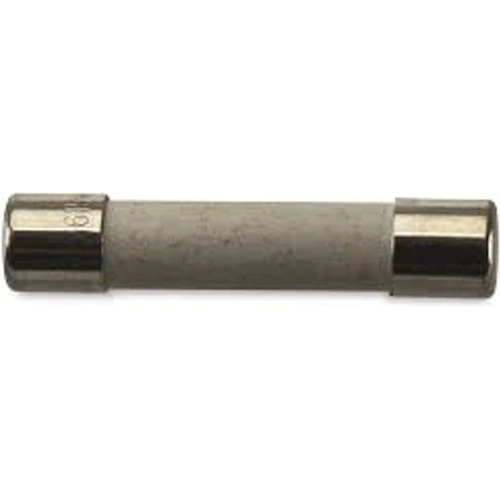

Microfuse 6.3 x 32 mm, 1.6 A, FF, 1 kV (DC), 1 kV (AC), 10 kA breaking capacity, Z109C, package with 10 pieces
NCNR (non cancelable / non returnable)
Unit Price (€ / pck.)
86.751 € *
Available in 7 Days: 41 pck. - if ordered today
Micro fuse, Z109C, GMC-I MESS
The Z109C is a accessory fuse that is used for measuring mA currents.
Features
- Material ceramic tube
- Super fast-acting
- High rated voltage
- High breaking capacity
Applications
- Multimeter accessries
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | microfuse | |
| Design | 6.3 x 32 mm | |
| Enclosure | ceramic tube | |
| Rated current | 1.6 A | |
| Tripping characteristics | FF | |
| Rated voltage (DC) | 1 kV | |
| Rated voltage (AC) | 1 kV | |
| Breaking capacity | 10 kA | |
| Length | 32 mm | |
| diameter | 6.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90309000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
