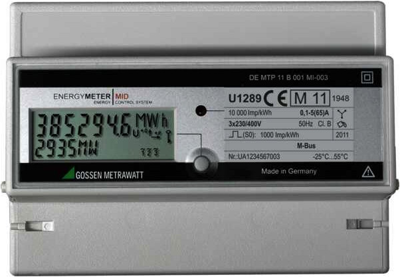

U1289-V014 | Gossen Metrawatt
Electric meter, for 4 conductor network, 3x 230 / 400 V, S0 pulse rate programmable, M-Bus, (L x W x H) 125.5 x 70 x 90 mm, U1289-V014
Order No.: 06N6918
EAN: 4099891454609
MPN:
U1289-V014
Unit Price (€ / pc.)
537.88 € *
Standard delivery time from the manufacturer is: 4 Weeks
Electricity energy meters, type Gossen Metrawatt U1.
MID certified, LCD, for logging active energy at any load, mount on DIN rail; Tolerance class: B (1). Pulse output: S0. Degree of protection: IP 51. Operating temperatures: –25 to +55 °C. Dimensions: D 70, W 125.5, H 90 mm. Weight: approx. 500 g.
With power display and direct connection, type 1289.
For 4-conductor 3-phase mains; Direct connection: 5.0 (65) A.
Technical attributes (type, reference voltage, pulse output, bus connection): U1289 U6 P8 V2 W2, 3 x 230/400 V, variable pulse rate, ground bus
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 125.5 mm | |
| Product type | energy meter | |
| Height | 90 mm | |
| Width | 70 mm | |
| Version | for 4 conductor network, 3x 230 / 400 V, S0 pulse rate programmable, M-Bus |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90283019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
