Z592X | Gossen Metrawatt

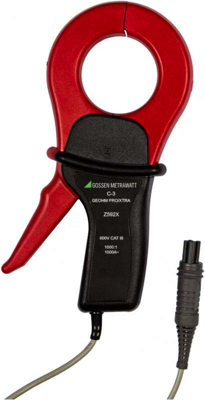

Clamp meter Z592X, 1200 A (AC), opening 52 mm, CAT IV 300 V
Order No.: 21K5667
EAN: 4012932128574
MPN:
Z592X
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
689.01 € *
Available in 7 Days: 1 pcs. - if ordered today
Measuring pliers, Z592X, Gossen Metrawatt
Clamp meter for GEOHM PRO/XTRA, measuring range: 0.001 ... 1200 A AC, max. cable diameter: 52 mm, transformation ratio: 1000 A / 1 A, frequency range: 30 Hz ... 10 kHz, IP 40, measuring category: 300 V CAT IV
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | clamp meter | |
| TRMS possible | No | |
| Pliers opening | 52 mm | |
| Surge voltage category | CAT IV 300 V | |
| max. measured current value (AC) | 1200 A | |
| min. Measured value (frequency) | 30 Hz | |
| max. measured value (frequency) | 10 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90309000 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
