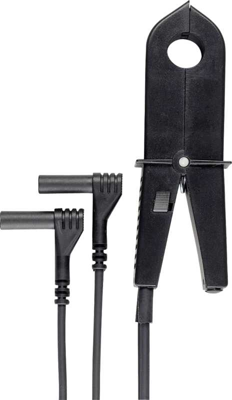

WZ12C | Gossen Metrawatt
TRMS current sensor WZ12C, 150 A (AC), opening 15 mm, CAT III 300 V
Order No.: 21K5531
EAN: 4012932113174
MPN:
WZ12C
Z219C
Unit Price (€ / pc.)
330.4035 € *
Available in 7 Days: 115 pcs. - if ordered today
Clamp current transformer, Z219C, Gossen Metrawatt
Clamp current sensor 1 mA ..15 A / 1...150 A a.c., switchable
Features
- Low transmission errors
- Suitable for power meters due to small phase angle error
- Compact and handy
- Permanently connected safety lines
- Current output
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. measured current value (AC) | 150 A | |
| min. Measured value (frequency) | 45 Hz | |
| Pliers opening | 15 mm | |
| TRMS possible | Yes | |
| Surge voltage category | CAT III 300 V | |
| max. resistance range | 10 kΩ | |
| Product type | current sensor | |
| max. measured value (frequency) | 400 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043129 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
