WZ11A | Gossen Metrawatt

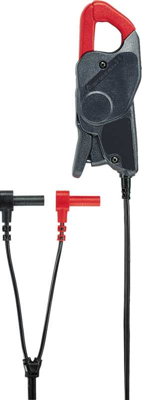

Current clamp WZ11A, 200 A (AC), opening 20 mm, CAT II 1000 V, CAT III 600 V
Order No.: 21K5492
EAN: 4012932112955
MPN:
WZ11A
Z208A
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
276.199 € *
Available in 7 Days: 25 pcs. - if ordered today
Clamp current transformer, Z208A, Gossen Metrawatt
Clamp current transformer 1...200AAC, 1mA/A, 1..3 %
Features
- Low transmission error
- Due to small phase angle error suitable for power meters
- Compact and handy
- Permanently connected safety lines
- Current output
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | current clamp | |
| TRMS possible | No | |
| Pliers opening | 20 mm | |
| Surge voltage category | CAT II 1000 V, CAT III 600 V | |
| max. measured current value (AC) | 200 A | |
| max. resistance range | 1 Ω | |
| min. Measured value (frequency) | 48 Hz | |
| max. measured value (frequency) | 400 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043129 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
