METRALINE PV 1500 | Gossen Metrawatt
TRMS clamp meter METRALINE PV 1500, 1000 A (DC), 1000 A (AC), 1000 V (AC), opening 35 mm, CAT IV 1000 V, CAT III 1500 V
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
343.91 € *
Standard delivery time from the manufacturer is: 2 Weeks

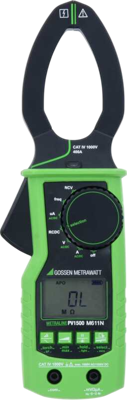

Current Clamp, METRALINE PV 1500, Gossen Metrawatt
The METRACLIP PV is the ideal solution for effective AC/DC current measurements on busbars with up to 1000 A. This large-format, drop-shaped current clamp is specially designed for measurements on busbars. Equipped with a backlit LCD panel, automatic shutdown and LPF, this innovative instrument offers a broad range of measuring functions-from resistance measurement to non-contact voltage detection. Certified to CAT IV 1000 V-CAT III 1500 V, the METRACLIP PV ensures maximum safety and is an indispensable tool for any electrical technician.
Features
- LCD with illumination
- AC/DC current measurement up to 1000 A
- Non-contact voltage detection
- Adapts perfectly to your workflow thanks to simple operation
- Ensures precise measurement results
- Distinguished by good value for the money
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | clamp meter | |
| Version | for AC and DC | |
| TRMS possible | Yes | |
| Pliers opening | 35 mm | |
| Surge voltage category | CAT IV 1000 V, CAT III 1500 V | |
| max. measured current value (DC) | 1000 A | |
| max. measured current value (AC) | 1000 A | |
| max. voltage measuring range (AC) | 1000 V | |
| max. resistance range | 40 MΩ | |
| min. Measured value (frequency) | 1 Hz | |
| max. measured value (frequency) | 9.99 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
