METRALINE CM 400 | Gossen Metrawatt
TRMS clamp meter METRALINE CM 400, 400 A (DC), 400 A (AC), 1000 V (AC), opening 35 mm, CAT IV 1000 V, CAT III 1500 V
Unit Price (€ / pc.)
213.01 € *
Standard delivery time from the manufacturer is: 2 Weeks

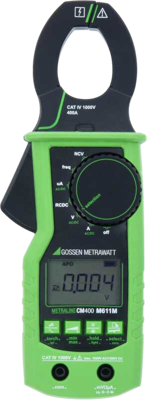

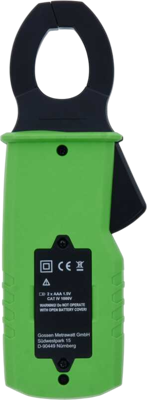

Current Clamp, METRALINE CM 400, Gossen Metrawatt
The METRALINE CLAMP is the ideal solution for precise measurement of direct and alternating currents of up to 400 A. The professional current clamp is especially well suited for applications in solar and industrial environments. With a backlit LCD panel, automatic shutdown and LPF, this innovative instrument offers a broad range of measuring functions-from resistance measurement to non-contact voltage detection. Certified to CAT IV 1000 V-CAT III 1500 V, the METRALINE CLAMP is an indispensable tool for any electrical technician.
Features
- LCD panel with background illumination
- AC/DC current measurement up to 400 A
- Non-contact voltage detection
- Seamless integration into your work procedures thanks to user-friendly operation
- Precise measurement results guaranteed!
- Distinguished by outstanding value for the money
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surge voltage category | CAT IV 1000 V, CAT III 1500 V | |
| max. voltage measuring range (AC) | 1000 V | |
| max. measured value (frequency) | 9.99 MHz | |
| TRMS possible | Yes | |
| min. Measured value (frequency) | 1 Hz | |
| Pliers opening | 35 mm | |
| max. measured current value (DC) | 400 A | |
| Version | for AC and DC | |
| Product type | clamp meter | |
| max. resistance range | 40 MΩ | |
| max. measured current value (AC) | 400 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
