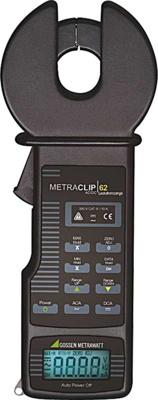

METRACLIP 62 | Gossen Metrawatt
TRMS current clamp METRACLIP 62, 200 mA (DC), 200 mA (AC), opening 18 mm, CAT III 300 V
Unit Price (€ / pc.)
1,474.41 € *
Standard delivery time from the manufacturer is: 4 Weeks
Clamp meter, M311F, Gossen Metrawatt
Leakage current clamp meter with specially shielded clamp opening for protection against external influences.
For leakage current measurements with the measuring ranges 200 mA, 2000 mA, 10 A TRMS, each AC and DC with Hall sensor . With automatic zero setting.
Features
- Robust housing
- Max-Hold, Min-Hold, Data-Hold, automatic switch-off
- Accuracy: ±1% ±5 digit (50 / 60 Hz)
- LCD 3.5 digit, up to 1999
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | current clamp | |
| TRMS possible | Yes | |
| Pliers opening | 18 mm | |
| Surge voltage category | CAT III 300 V | |
| max. measured current value (DC) | 200 mA | |
| max. measured current value (AC) | 200 mA | |
| min. Measured value (frequency) | 50 Hz | |
| max. measured value (frequency) | 2 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
