METRACLIP 410 | Gossen Metrawatt

TRMS AC/DC current clamp METRACLIP 410, 400 A (DC), 400 A (AC), 300 V (DC), 300 V (AC), opening 25 mm, CAT III 300 V

Order No.: 21K5338
EAN: 4012932122022
MPN:
METRACLIP 410
M320B
Series: METRACLIP
METRACLIP 410 Gossen Metrawatt Clamp Meters
Image may differ
Unit Price (€ / pc.)
552.16 € *
Available in 7 Days: 37 pcs. - if ordered today
Total Price:
552.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
552.16 €

AC-DC Current Clamp, M320B, Gossen Metrawatt

AC/DC - Zangenstrommessgerät bis 400 A

The METRACLIP 410 clamp current meter is used for precise, non-contact measurement of AC and DC currents and complex current forms.

Ideal for electricians, as AC and DC can be measured - and currents up to 300 A, according to the requirements of "workshop equipment

  • Real effective value display
  • 1 mA / 10 mA Resolution
  • Automatic measuring range selection
  • Automatic zero adjustment
  • Automatic switch off
  • Hold measured values
  • Gripper opening 25 mm

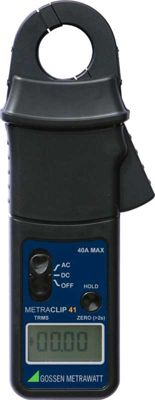

  • METRACLIP 41: Precise current measurement from 5 mA to 40 A
  • METRACLIP 410: Precise current measurement from 100 mA to 400 A

1 AC / DC clamp ammeter

1 9 V alkaline battery

1 Instruction manual

Technical specifications
Filter Property Value
Product type AC/DC current clamp
TRMS possible Yes
Pliers opening 25 mm
Surge voltage category CAT III 300 V
max. measured current value (DC) 400 A
max. measured current value (AC) 400 A
max. voltage measuring range (DC) 300 V
max. voltage measuring range (AC) 300 V
min. Measured value (frequency) 15 Hz
max. measured value (frequency) 400 Hz
Logistics
Property Value
Customs tariff number 90303370
Country of origin GB
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
