CP1100 | Gossen Metrawatt

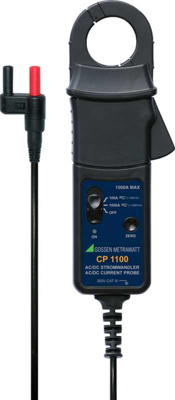

TRMS AC/DC current clamp transformer CP1100, 2000 A (DC), 2000 A (AC), 300 V (DC), 300 V (AC), opening 32 mm, CAT III 300 V
Order No.: 21K5477
EAN: 4012932122077
MPN:
CP1100
Z203B
Unit Price (€ / pc.)
586.67 € *
Available in 7 Days: 13 pcs. - if ordered today
AC/DC clamp-on current sensor, Z203B, Gossen Metrawatt
The CP30, CP330, CP1100 and CP1800 clamp-on current sensors are designed for accurate, non-contact measurement of AC and DC currents and complex current waveforms (TRMS).
AC/DC clamp-on current sensor with voltage output for multimeter, 100A /1000A, 32mm dia.
Features
- The characteristics of Hall-effect sensors make them a powerful instrument for measuring inverters, switched-mode power supplies, industrial controls, and other applications that require current measurement or waveform analysis.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | AC/DC current clamp transformer | |
| TRMS possible | Yes | |
| Pliers opening | 32 mm | |
| Surge voltage category | CAT III 300 V | |
| max. measured current value (DC) | 2000 A | |
| max. measured current value (AC) | 2000 A | |
| max. voltage measuring range (DC) | 300 V | |
| max. voltage measuring range (AC) | 300 V | |
| min. Measured value (frequency) | 45 Hz | |
| max. measured value (frequency) | 65 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 90303370 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
