SSP 32 N 80RU 3P | Gossen Metrawatt
Laboratory power supply, 80 VDC, outputs: 1 (3 A), 0 to 3 A, 120 W, 230 VAC, SSP 32 N 80RU 3P
Order No.: 21K5249
EAN: 4016138540901
MPN:
SSP 32 N 80RU 3P
KONSTANTER SSP 120-80
This item is no longer available.
As an alternative, we recommend the following item:

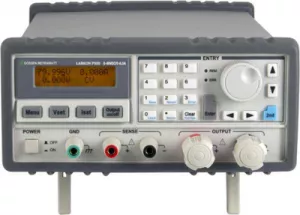

Laboratory power supply, 80 VDC, outputs: 1 (6.5 A), 0 to 6.5 A, 500 W, 115-230 VAC, LABKON P500 80V 6.5A
Order No.: 21K5235
Manufacturer: Gossen Metrawatt
per pc. 1,785.00 € *
SSP Constant, K322A, Gossen Metrawatt
The SSP 32N series KONSTANTERs cover the ratings of 120W, 240W, 320 W with an output voltage up to 80 V and a rated current up to 20A.
BET (Bidirectional Energy Transformation) circuitry realizes nearly load-independent rise and fall times. The devices have analog as well as digital interfaces and are therefore ideally suited for use in the test field. Power outputs at the front and rear allow use as a laboratory or as a built-in device.
Features
- Load-independent setpoint jumps < 1ms
- Auto-Range Output
- Short-time working range up to 200% of rated output power
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 221.5 mm | |
| Input voltage AC | 230 VAC | |
| Range of Output Currence | 0 to 3 A | |
| Height | 88 mm | |
| Output current | 3 A | |
| Depth | 400 mm | |
| Number of outputs | 1 | |
| Power | 120 W | |
| efficiency | 80 % | |
| Output voltage DC | 80 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
