SSP 32 N 40RU 6P | Gossen Metrawatt

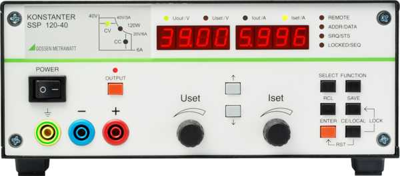

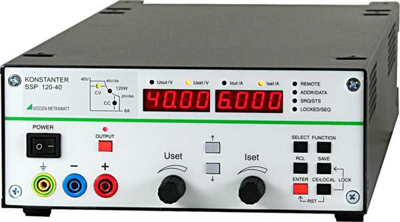

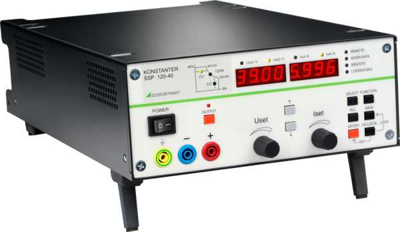

Laboratory power supply, 40 VDC, outputs: 1 (6 A), 0 to 6 A, 120 W, 230 VAC, SSP 32 N 40RU 6P
Order No.: 21K5248
EAN: 4016138540895
MPN:
SSP 32 N 40RU 6P
KONSTANTER SSP 120-40
This item is no longer available.
As an alternative, we recommend the following item:

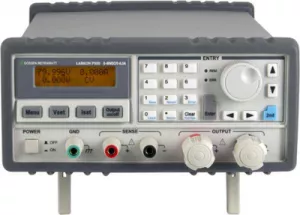

Laboratory power supply, 35 VDC, outputs: 1 (14.5 A), 0 to 14.5 A, 500 W, 115-230 VAC, LABKON P500 35V 14.5A
Order No.: 21K5234
Manufacturer: Gossen Metrawatt
per pc. 1,785.00 € *
SSP Constant, K321A, Gossen Metrawatt
The SSP 32N series KONSTANTERs cover the ratings of 120W, 240W, 320 W with an output voltage up to 80 V and a rated current up to 20A.
BET (Bidirectional Energy Transformation) circuitry realizes nearly load-independent rise and fall times. The devices have analog as well as digital interfaces and are therefore ideally suited for use in the test field. Power outputs at the front and rear allow use as a laboratory or as a built-in device.
Features
- Load-independent setpoint jumps < 1ms
- Auto-Range Output
- Short-time working range up to 200% of nominal output power
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 40 VDC | |
| Power | 120 W | |
| Depth | 400 mm | |
| Range of Output Currence | 0 to 6 A | |
| efficiency | 70 % | |
| Height | 88 mm | |
| Input voltage AC | 230 VAC | |
| Width | 221.5 mm | |
| Number of outputs | 1 | |
| Output current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
