SPL 350-30 | Gossen Metrawatt
Electronic load, 0 to 30 A, 350 W, 115-230 VAC, SPL 350-30
Unit Price (€ / pc.)
3,272.50 € *
Available in 7 Days: 12 pcs. - if ordered today

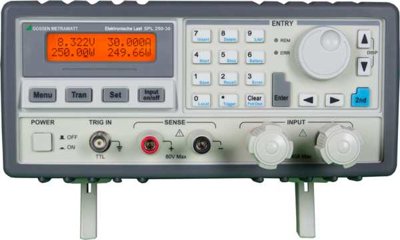

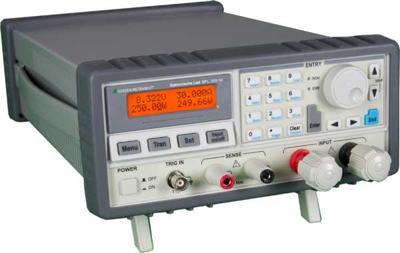

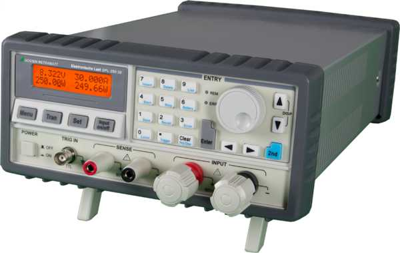

Electronic load, K855A, Gossen Metrawatt
The SPL Series Electronic Loads are highly accurate DC current sinks for use in research, development, production, service and education.
Features
- 4 operating modes: constant current, constant voltage, constant load, constant power
- High-speed sequence and transient measurement, short-circuit withstand, battery discharge and other auxiliary functions
- Programmable current rise and fall time, steep edges
- Several groups of parameters (device settings) and sequences (load profile) can be saved and retrieved.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 350 W | |
| Depth | 414 mm | |
| Range of Output Currence | 0 to 30 A | |
| Load resistance | 0.066 to 6660 Ω | |
| Height | 110 mm | |
| Input voltage AC | 115-230 VAC | |
| Width | 226 mm | |
| Load direct current | 0 to 30 A | |
| Load DC voltage | 0 to 200 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85437090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
