LSP 32 K 72 R 1,5 | Gossen Metrawatt
Laboratory power supply, 0 bis 72 VDC, outputs: 1 (1.5 A), 0 to 1.5 A, 100 W, 115-230 VAC, LSP 32 K 72 R 1,5
Unit Price (€ / pc.)
1,249.50 € *
Available in 7 Days: 19 pcs. - if ordered today

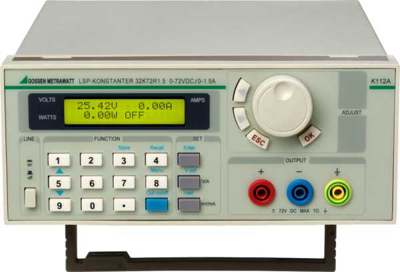

Laboratory power supply, K112A, Gossen Metrawatt
The laboratory power supplies of the LSP-Konstanter 32K series are high-precision DC power supplies for use in research, development, production, service and training. Three types are available with an output power of approx. 100 W.
The devices are characterized by high control accuracy and very low residual ripple with high operating comfort.
Features
- Floating output
- Safe electrical isolation
- Output switchable ON/OFF
- Voltage and current control (square wave characteristic)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 0 to 72 VDC | |
| Output current | 1.5 A | |
| Range of Output Currence | 0 to 1.5 A | |
| Power | 100 W | |
| Input voltage AC | 115-230 VAC | |
| Number of outputs | 1 | |
| Width | 215 mm | |
| Height | 100 mm | |
| Depth | 280 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
