LABKON P800 120V 6.5A | Gossen Metrawatt
Laboratory power supply, 120 VDC, outputs: 1 (6.5 A), 0 to 6.5 A, 800 W, 115-230 VAC, LABKON P800 120V 6.5A
Unit Price (€ / pc.)
2,320.50 € *
Available in 7 Days: 10 pcs. - if ordered today

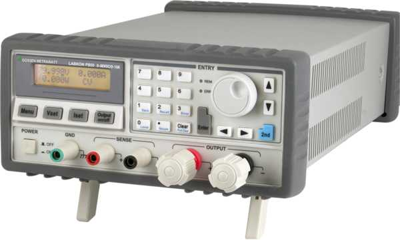

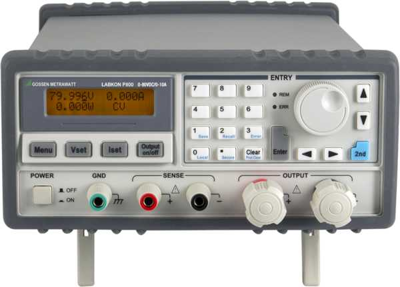

Laboratory power supply, K160A, Gossen Metrawatt
The computer-controllable KONSTANTERs of the LABKON P series provide the user with manually and remotely controllable DC power supplies for laboratory and system use. The devices of the series cover the rated power from 500 to 800 watts, with an output voltage between 20 and 120 V and currents of up to 40 A.
They offer good dynamic properties for setpoint changes and load jumps. Due to the high stability of the power output, the nominal values can be supplied permanently and can be repeated at any time due to the precise digital setpoint setting, thus making results reproducible.
Features
- Power 500 W or 800 W
- Voltages up to 120 V, currents up to 6.5 A
- Operating modes CV and CC, automatic switching
- Output voltage and output current continuously adjustable from 0 to nominal value
- Multiple groups of parameters (instrument settings) can be stored and recalled.
Technical specifications
Range of Output Currence | 0 to 6.5 A | |
Depth | 414 mm | |
Output voltage DC | 120 VDC | |
Output current | 6.5 A | |
Width | 226 mm | |
Height | 110 mm | |
Power | 800 W | |
Number of outputs | 1 | |
Input voltage AC | 115-230 VAC |
Download
Logistics
Country of origin | CN |
Customs tariff number | 85044083 |
Compliance
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
RoHS conform | Yes |
