MAVO-MONITOR USB | Gossen Foto und Lichtmesstechnik
Luminance meter, 0.01-19 990 cd/m², ±2.5 %, Gossen Foto und Lichtmesstechnik MAVO-MONITOR USB
Unit Price (€ / pc.)
1,855.21 € *
Standard delivery time from the manufacturer is: 4 Weeks

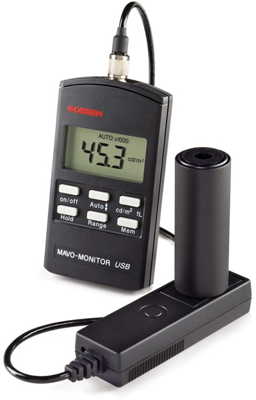

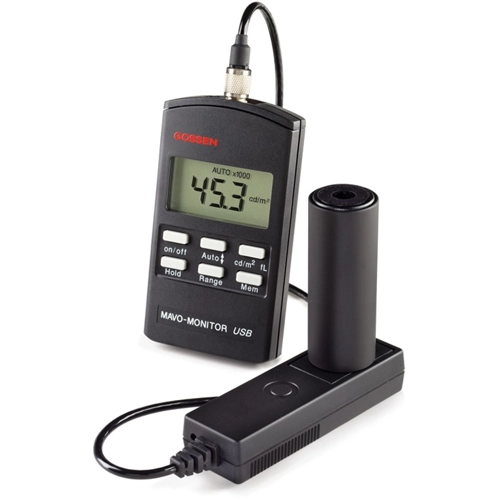

Luminance meter, MAVO-MONITOR USB, Gossen Foto und Lichtmesstechnik
The MAVO-MONITOR USB is a high-precision luminance meter for contact measurement is assigned to class B in accordance with DIN 5032-7, appendix B of DIN EN 13032-1 and CIE 69, and measures the perceived light of back-lighted surfaces in candelas per square meter (cd/m²) or foot-lamberts (fL). It is the excellent adaptation to the spectral spectral brightness sensitivity of the human eye with a minimum deviation of only f1’ < 3 % that is significantly better than the specifications demanded in the standard.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| measurement range | 0.01-19 990 cd/m² | |
| Product type | luminance meter | |
| Version | (L x W x H) 65 x 120 x 19 mm | |
| Accuracy | ±2.5 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90278910 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
