61128 | Goobay

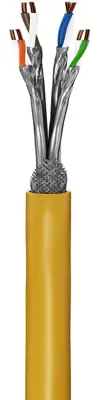

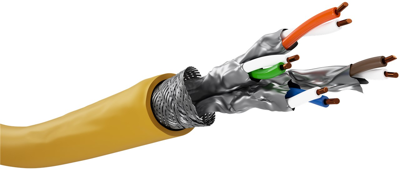

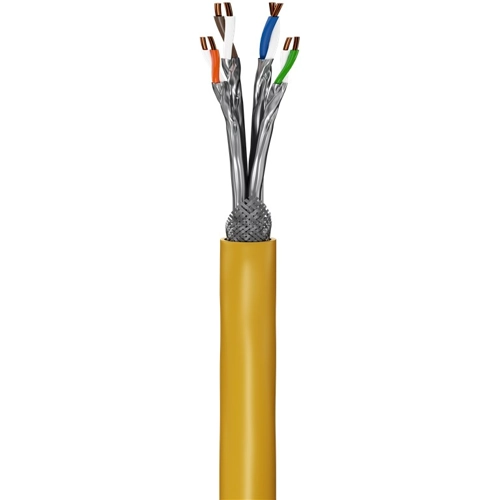

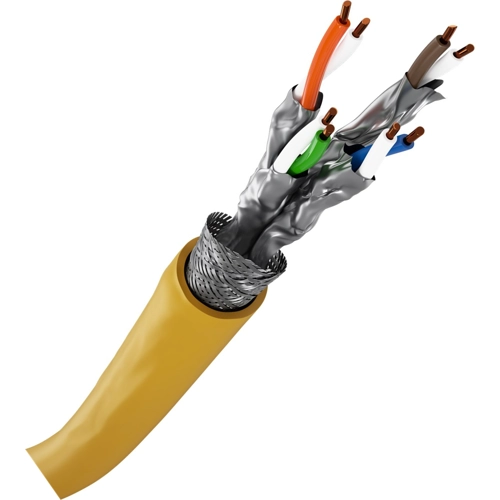

LSZH data cable, Cat 8.1, 8-wire, AWG 22-1, yellow, 61128
Order No.: 96F8360
EAN: 4040849611285
MPN:
61128
Unit Price (€ / mtr.)
1.7612 € *
Standard delivery time from the manufacturer is: On Request
Network cable, 61128, Goobay
Features
- LAN cable for setting up a CAT 8.1 channel
- Suitable for 25GBase-T and 40GBase-T Ethernet networks (40-gigabit capable) and backward compatible with 10BASE-T, 100BASE-TX, 1000BASE-T
- With a transmission bandwidth of up to 2,000 MHz, the Ethernet cable has 4 times the bandwidth of CAT 6A cables
- Equipped with wire pairs with an aluminium foil screen (PiMF) and an S/FTP overall screen made of aluminium braid for a loss-free signal transmission
- Low-smoke and halogen-free network cable for structured indoor installation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of cores | 8 | |
| Version | network cable | |
| AWG cross-section | AWG 22-1 | |
| Temperature range (active) | -20 °C to 60 °C | |
| Halogen free | Yes | |
| Category | Cat 8.1 | |
| Material | LSZH | |
| Temperature range (unmoved) | 0 °C to 50 °C | |
| Cable material | copper | |
| Colour | yellow | |
| Drag chain suitable | No | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 100 meters |
| Country of origin | CN |
| Customs tariff number | 85444920 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
