27518 | Goobay

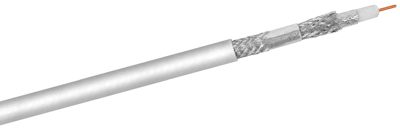

Coaxial cable 75 Ohm, 120 dB, 4-fold shielded, white
Order No.: 69N300
EAN: 4040849275180
MPN:
27518
Unit Price (€ / mtr.)
0.3927 € *
Available: 200 mtr.
Coaxial cable, 27518, Goobay
Features
- Digitally compatible for installating HDTV via DVB-S/S2, DVB-T/T2, DVB-C/C2
- 4-fold shielded satellite cable for interference-free transmission
- With Metre scaling is indicated on the antenna cable
- TV aerial cable meets the CPR (Construction Products Regulation), corresponding to the Eca fire protection class
- For connecting or extending e. g. cable TV or radio systems

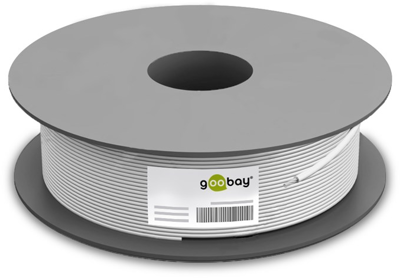

- Coax cable is supplied on a cardboard cable reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 6.9 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C | |
| Cable material | CCS | |
| Shielding | shielded | |
| Colour | white | |
| Material | PVC | |
| Impedance | 75 Ω | |
| Dielectric diameter | 4.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85442000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
