TG UNI 1 | GMW

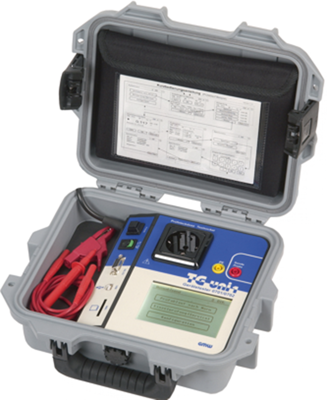

Device tester, LCD display, CAT II 300 V, VDE 0701/0702, GMW TG UNI 1

Order No.: 24K2152
EAN: 4099891472818
MPN:
TG UNI 1
TG UNI 1 GMW VDE testers, Installation testers, Insulation testers
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
Safety tester, USB data interface, CAT II 300 V, VDE 0701/0702, GMW TG EURO 1 MED
Safety tester, USB data interface, CAT II 300 V, VDE 0701/0702, GMW TG EURO 1 MED
Order No.: 24K2155
Manufacturer: GMW
per pc. 1,747.2889 € *

Equipment testers to VDE, type GMW TG uni 1.

For testing safety measures to VDE 0701/0702. Manual or automatic test sequence. Touch screen, USB port and RS-232 interface, MMC and internal data memory; Voltage: 190 to 250 VAC. Current: 0 to 16 AAC. Effective/reactive/apparent power: 0 to 3700 VA. Power factor: 0 to 1.0. Measurements to VDE 0701 and 0702: ground conductor resistance 0 to 2.0 ohm, limit value 0.3 ohm (can be adjusted up to 0.9 ohm for extension cords), measuring current min. 200 mA DC (automatic polarity reversal), insulation resistance 200 kohm to 20 Mohm, limit values for protection class I/II/III devices 1.0/2.0/0.25 Mohm. Measuring voltage: min. 500 VDC. Short-circuit current: max. 4.5 mA. Equivalent leakage current: 0 to 20 mA. Limit value for devices with heating conductor: max. 3.5/min. 3.5 kW, 3.5 mA/1.0 mA/kW. Ground conductor current: (direct or differential): 0 to 20 mA (with automatic polarity reversal). Limit value: 3.5 mA. Contact current (direct or differential): 0 to 2.0 mA (with automatic polarity reversal). Limit value: 0.5 mA. Display: backlit matrix pixel graphic LCD, 240 x 128 pixels. Tolerance: ±5.0 %. Power supply: 230 VAC. Degree of soiling: 2. Overvoltage category: CAT II 300 V. Degree of protection: IP 20. Dimensions: 300 x 130 x 250 mm. Weight: 3.1 kg. Supplied with PC software for printing the logs.

Type: TG uni 1, equipment tester

Technical specifications
Degree of protection (IP) IP20
Surge voltage category CAT II 300 V
Insulation resistance Min 200 kΩ
Product type device tester
Version LCD display
Insulation resistance Max 200 MΩ
Measurement Standard VDE 0701/0702
Logistics
Customs tariff number 90303100
Country of origin DE
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
