7247505313B | GMW

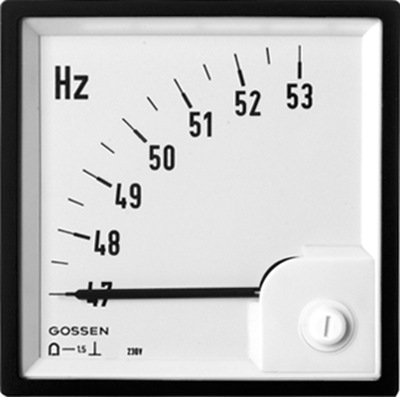

Panel-mount frequency meter, Front panel, Moving-coil mechanism, AC, 7247505313B
Order No.: 15K270
EAN: 4099891454661
MPN:
7247505313B
FQB72 47-53HZ
Unit Price (€ / pc.)
71.6142 € *
Standard delivery time from the manufacturer is: 1 Week
Panel frequency meters, type GMW FQB.
Moving coil instrument with integrated frequency converter and black slim-line bezel to DIN 43718; Case material: polycarbonate, self-extinguishing and non-dripping to UL 94 V-0. Glass: glare resistant. Current consumption: 5.0 mA. Degree of protection: IP 52. Operating position: vertical. Mounting depth: without/with covers 53/66 mm.
With bezel dimensions of 72 x 72 mm, type FQB 72.
Mounting cutout: 68 x 68 mm. Scale length: 63 mm. Operating voltage: max. 600 V. Test voltage: 5.8 kV. Weight: 200 g.
Technical attributes (type, scale range): 72475 05313 B, 47 to 53 Hz
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Voltage | 230 VAC | |
| Counting frequency | 53 Hz | |
| Height | 72 mm | |
| Assembly | built-in mounting | |
| Width | 72 mm | |
| Degree of protection (IP) | IP52 | |
| Installation depth | 66 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303370 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
