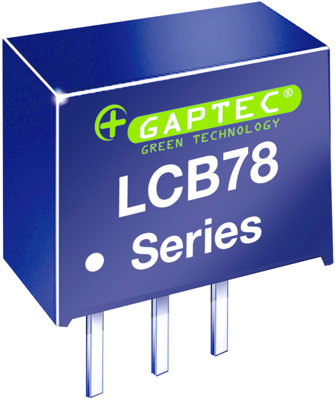

LCB78 05-0.5 | GAPTEC
DC converter, 6.5-55 VDC, 2.5 W, 1 output, 5 VDC, 95 % efficiency, LCB78 05-0.5
Order No.: 33C114
EAN: 4099891335007
MPN:
LCB78 05-0.5
Unit Price (€ / pc.)
10.9599 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
460.32 € *
Price list
Quantity
Price per unit*
42 pcs.
10.9599 €
168 pcs.
10.3292 €
672 pcs.
9.6866 €
*incl. VAT plus shipping costs
Subject to prior sale
Switching mode regulators, type GAPTEC LC78../LC..78../LMP78.
Pin-compatible with voltage regulator LM78.; Operating temperatures: –40 to +85 °C.
Technical attributes (type, input voltage range, output voltage, output current): LCB78 UC05-0.5, 6.5 to 55 VDC, 5.0 VDC, 0.5 A
Technical specifications
| Output voltage DC | 5 VDC | |
| Output current | 500 mA | |

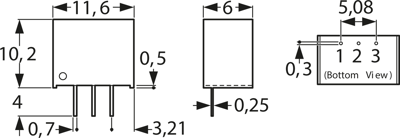

| Width | 6 mm | |
| Height | 10.2 mm | |
| Power | 2.5 W | |
| Length | 11.6 mm | |
| Design | SIP3 | |
| Number of outputs | 1 | |
| efficiency | 95 % | |
| Input voltage AC | 6.5-55 VDC |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
| Original Packaging | Bar with 42 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
