LC78 03-1.0 | GAPTEC

DC converter, 4.5-42 VDC, 3.3 W, 1 output, 3.3 VDC, 89 % efficiency, LC78 03-1.0

Order No.: 33C104
EAN: 4099891334932
MPN:
LC78 03-1.0
Series: LC78

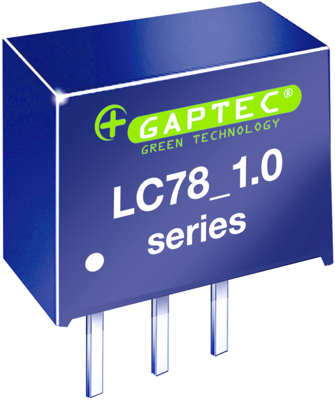

LC78 03-1.0 GAPTEC DC/DC Converters Image 1

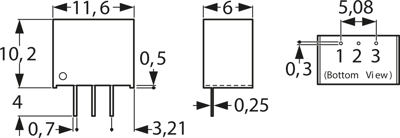

LC78 03-1.0 GAPTEC DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
11.9595 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
502.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
42 pcs.
11.9595 €

Switching mode regulators, type GAPTEC LC78../LC..78../LMP78.

Pin-compatible with voltage regulator LM78.; Operating temperatures: –40 to +85 °C.

Technical attributes (type, input voltage range, output voltage, output current): LC78 UC03-1.0, 4.5 to 42 VDC, 3.3 VDC, 1.0 A

Technical specifications
Output voltage DC 3.3 VDC
Output current 1 A
Width 6 mm
Height 10.2 mm
Power 3.3 W
Length 11.6 mm
Design SIP3
Number of outputs 1
efficiency 89 %
Input voltage AC 4.5-42 VDC
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
