CWR2 10R J | Futaba
Wirewound resistor, 10 Ω, 2 W, ±5 %, CWR2 10R J
Unit Price (€ / pc.)
0.9044 € *
Standard delivery time from the manufacturer is: 27 Weeks

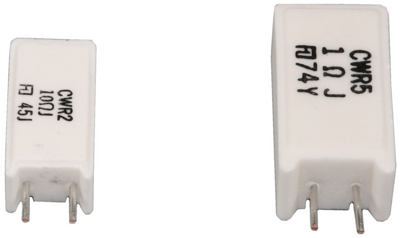

Wire-wound or metal oxide resistors, tolerance 5.0 %, type Futaba CWR/COR.
Compact design for PCB mounting and with high-temperature resistant quartz ceramic body
Wire-wound resistors, rated load 2.0 W, type CWR-2.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 10 Ω | |
| max. operating temperature | 200 °C | |

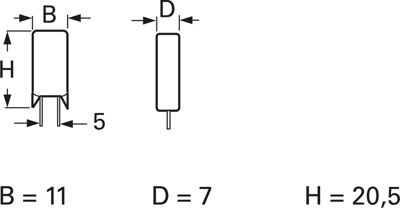

| Length | 11 mm | |
| min. operating temperature | -40 °C | |
| Height | 20.5 mm | |
| Assembly | THT | |
| Width | 7 mm | |
| Design | radial | |
| Power | 2 W | |
| Temperature coefficient | ±350 ppm/K | |
| Version | wirewound resistor | |
| Tolerance | ±5 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
