COR5 1K0 J | Futaba

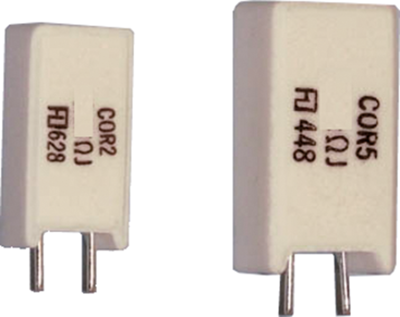

Metal oxide film resistor, 1 kΩ, 5 W, ±5 %, COR5 1K0 J
Unit Price (€ / pc.)
2.0825 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
20.83 € *
Price list
Quantity
Price per unit*
10 pcs.
2.0825 €
50 pcs.
1.8326 €
250 pcs.
1.5708 €
1000 pcs.
1.3804 €
2500 pcs.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire-wound or metal oxide resistors, tolerance 5.0 %, type Futaba CWR/COR.
Compact design for PCB mounting and with high-temperature resistant quartz ceramic body
Metal oxide resistors, rated load 5.0 W, type COR-5.
Technical specifications
| Version | metal oxide resistor | |
| Length | 13 mm | |
| Width | 9 mm | |
| min. operating temperature | -40 °C | |
| Tolerance | ±5 % | |
| max. operating temperature | 200 °C | |
| Design | radial | |
| Height | 25.5 mm | |
| Assembly | THT | |
| Temperature coefficient | ±350 ppm/K | |
| Power | 5 W | |
| ohmic resistance | 1 kΩ |
Download
Logistics
| Customs tariff number | 85332100 |
| Country of origin | JP |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
