JS-12-N-K | Fujitsu
Relay, 1 Form C (NO/NC), 12 V (DC), 660 Ω, 10 A, 300 V (DC), 400 V (AC), monostable, JS-12-N-K
Unit Price (€ / pc.)
2.3086 € *
Available: 771 pcs.
Total Price:
2.31 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3086 €
25 pcs.
1.9635 €
100 pcs.
1.8207 €
250 pcs.
1.7136 €
1000 pcs.
1.5708 €
*incl. VAT plus shipping costs
Subject to prior sale

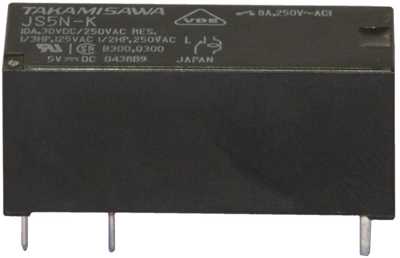

Miniature Power relay, type Fujitsu/Takamisawa JS.
Monostable, low design, sealed; Contacts: 1 x CO or 1 NO (depends on type). Contact material: AgSnO2/Au. Rated load: 8.0 A (24 VDC), 8.0 A (250 VAC). Switching voltage: max. 150 VDC / 400 VAC. Switching current: max. 10 A. Breaking capacity: max. 192 W / 2000 VA. Response/release time: 10/5.0 ms. Ambient temperatures: –40 to +85 °C. Certifications: UL, CSA, VDE, SEV, SEMKO, ÖVE, FIMKO, NEMKO, DEMKO, CQC, BSI.
1 x CO contact and 3.2 mm grid, type JS.
Technical attributes (type, rated voltage, response/release voltage, coil resistance, rated power): JS-12N-K, 12 VDC, 8.5/1.2 VDC, 660 ohm, 220 mW
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 12 V | |
| Switching Voltage (DC) | 300 V | |
| switching current | 10 A | |
| Coil resistance | 660 Ω | |
| Contact type | 1 Form C (NO/NC) | |
| Switching Voltage (AC) | 400 V | |
| Coil type | monostable | |
| Connection | PCB connection | |
| Contact material | AgSnO2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
