FTR-B3CA4.5Z | Fujitsu
Relay, 2 Form C (NO/NC), 4 V (DC), 145 Ω, 2 A, 220 V (DC), 250 V (AC), monostable, FTR-B3CA4.5Z
Unit Price (€ / pc.)
2.3562 € *
Available: 480 pcs.
Total Price:
2.36 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3562 €
25 pcs.
2.0111 €
100 pcs.
1.8564 €
250 pcs.
1.7493 €
1000 pcs.
1.6065 €
*incl. VAT plus shipping costs
Subject to prior sale

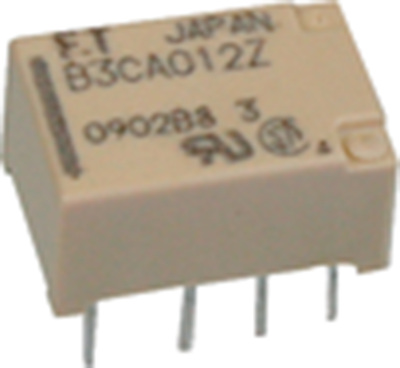

Miniature signal relay, type Fujitsu/Takamisawa FTR-B3.
Compact design, monostable; Contact type: 2 x CO (fork contacts). Contact material: AgNi, gold-plated. Rated load: 1.0 A/30 VDC, 0.3 A/125 VAC. Switching voltage: max. 250 VAC/220 VDC. Switching current: max. 2.0 A. Breaking capacity: max. 62.5 VA/30 W. Dielectric strength coil/contact: 1500 VAC (60 s). Response and release time: max. 3.0 ms. Ambient temperatures: –40 to +85 °C. Certifications: UL, CSA.
Technical attributes (type, rated coil voltage, coil resistance (±10%), rated coil power): FTR-B3CA4.5Z, 4.5 VDC, 145 ohm, 140 mW
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 4 V | |
| Switching Voltage (DC) | 220 V | |
| switching current | 2 A | |
| Coil resistance | 145 Ω | |
| Contact type | 2 Form C (NO/NC) | |
| Switching Voltage (AC) | 250 V | |
| Coil type | monostable | |
| Connection | PCB connection | |
| Contact material | AgNi |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
