SIH82210040080 | FTcap

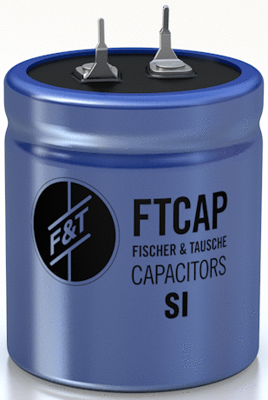

Electrolytic capacitor, 8200 µF, 100 V (DC), ±20 %, radial, pitch 10 mm, Ø 40 mm, SIH82210040080
Unit Price (€ / pc.)
19.5160 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
3,903.20 € *
Price list
Quantity
Price per unit*
200 pcs.
19.5160 €
500 pcs.
18.9329 €
1000 pcs.
17.9571 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, 1023639, FTcap
The 1023639 electrolytic capacitor features a high reliability and high CV product. It is ultra compact with all internal contacts welded.
Applications
- HiFi
- Computer
- Industrial
- Tube amplifier
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | snap-in | |
| Rated voltage (DC) | 100 V | |
| Length | 80 mm | |
| Design | radial | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| diameter | 40 mm | |
| Ripple current | 7 A | |
| Version | polar | |
| Capacity | 8200 µF | |
| Tolerance | ±20 % | |
| Grid | 10 mm | |
| ESR (Equivalent Series Resistance) | 19 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 200 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
