SI4P15245040100 | FTcap

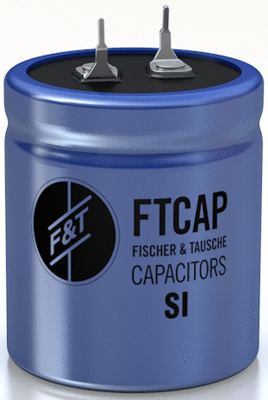

Electrolytic capacitor, 1500 µF, 450 V (DC), ±20 %, radial, Ø 40 mm, SI4P15245040100
Unit Price (€ / pc.)
22.6576 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
4,531.52 € *
Price list
Quantity
Price per unit*
200 pcs.
22.6576 €
500 pcs.
21.9793 €
1000 pcs.
20.8488 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, 1025618, FTcap
The 1025618 electrolytic capacitor features a high reliability and long useful life, with all internal contacts securely welded.
Features
- High CV product
- RoHS compliant
- REACH compliant
Applications
- HiFi
- Computer
- Inverter/drives
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | snap-in | |
| Tolerance | ±20 % | |
| Capacity | 1500 µF | |
| diameter | 40 mm | |
| Rated voltage (DC) | 450 V | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Version | polar | |
| Design | radial | |
| Ripple current | 4 A | |
| ESR (Equivalent Series Resistance) | 74 mΩ | |
| Length | 100 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 200 pieces |
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
