SI10302522035 | FTcap

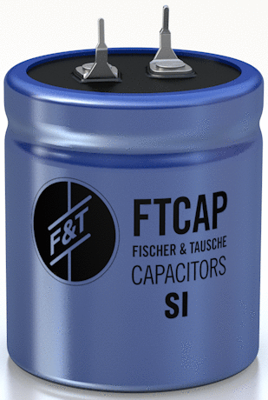

Electrolytic capacitor, 10000 µF, 25 V (DC), ±20 %, radial, pitch 10 mm, Ø 22 mm, SI10302522035
Unit Price (€ / pc.)
5.2360 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
2,618.00 € *
Price list
Quantity
Price per unit*
500 pcs.
5.2360 €
1000 pcs.
5.0813 €
3000 pcs.
4.8195 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, 1015106, FTcap
The 1015106 electrolytic capacitor features a high reliability and long useful life, with all internal contacts securely welded.
Features
- High CV product
- RoHS compliant
- REACH compliant
Applications
- HiFi
- Computer
- Inverter/drives
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 10000 µF | |
| diameter | 22 mm | |
| max. operating temperature | 85 °C | |
| Length | 35 mm | |
| min. operating temperature | -40 °C | |
| Grid | 10 mm | |
| Ripple current | 2.5 A | |
| Design | radial | |
| Connection | snap-in | |
| ESR (Equivalent Series Resistance) | 45 mΩ | |
| Version | polar | |
| Rated voltage (DC) | 25 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 500 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
