SH47116030054 | FTcap

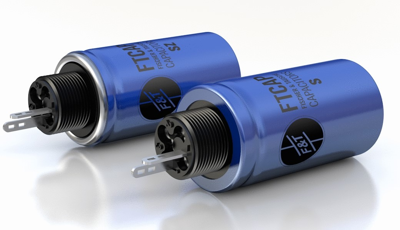

Electrolytic capacitor, 470 µF, 160 V (DC), -10/+30 %, can, Ø 30 mm, SH47116030054
Unit Price (€ / pc.)
13.2328 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
6,616.40 € *
Price list
Quantity
Price per unit*
500 pcs.
13.2328 €
1000 pcs.
12.8401 €
3000 pcs.
12.1737 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, 1015062, FTcap
The 1015062 electrolytic capacitor features high reliability and central mounting, with all contacts welded.
Features
- Soldering lug terminals
- RoHS compliant
- REACH compliant
Applications
- Industrial
- Signalization
- Industrial
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Rated voltage (DC) | 160 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C | |
| diameter | 30 mm | |
| ESR (Equivalent Series Resistance) | 200 mΩ | |
| Tolerance | -10/+30 % | |
| Length | 54 mm | |
| Design | can | |
| Capacity | 470 µF | |
| Connection | soldering lug | |
| Ripple current | 1.4 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 500 pieces |
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
