SH47010025040 | FTcap

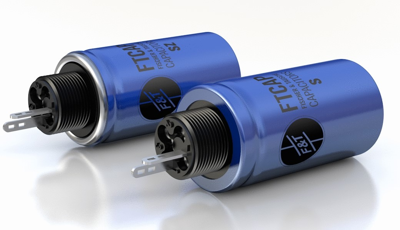

Electrolytic capacitor, 47 µF, 100 V (DC), -10/+30 %, can, Ø 25 mm, SH47010025040
Unit Price (€ / pc.)
11.4002 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
5,700.10 € *
Price list
Quantity
Price per unit*
500 pcs.
11.4002 €
1000 pcs.
11.0670 €
3000 pcs.
10.4958 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, 1015045, FTcap
The 1015045 electrolytic capacitor features high reliability and central mounting, with all contacts welded.
Features
- Soldering lug terminals
- RoHS compliant
- REACH compliant
Applications
- Industrial
- Signalization
- Industrial
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Rated voltage (DC) | 100 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C | |
| diameter | 25 mm | |
| Tolerance | -10/+30 % | |
| Length | 40 mm | |
| Design | can | |
| Capacity | 47 µF | |
| Connection | soldering lug |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 500 pieces |
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
