SH22110025040 | FTcap

Electrolytic capacitor, 220 µF, 100 V (DC), -10/+30 %, can, Ø 25 mm, SH22110025040

Order No.: 14D4223
EAN: 4099891765477
MPN:
SH22110025040
1024684
Series: SH
SH22110025040 FTcap Electrolytic Capacitors

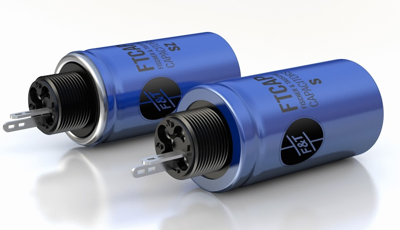

Image may differ

Electrolytic capacitor, 1024684, FTcap

The 1024684 electrolytic capacitor features high reliability and central mounting, with all contacts welded.

Features

  • Soldering lug terminals
  • RoHS compliant
  • REACH compliant

Applications

  • Industrial
  • Signalization
  • Industrial
Technical specifications
Rated voltage (DC) 100 V
Capacity 220 µF
diameter 25 mm
Length 40 mm
Version polar
Design can
ESR (Equivalent Series Resistance) 233 mΩ
min. operating temperature -40 °C
Connection soldering lug
Tolerance -10/+30 %
max. operating temperature 105 °C
Ripple current 0.6 A
Logistics
Country of origin DE
Customs tariff number 85322200
Original Packaging Carton with 500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
