S47045025040 | FTcap
Electrolytic capacitor, 47 µF, 450 V (DC), -10/+30 %, can, Ø 25 mm, S47045025040
This item is no longer available.
As an alternative, we recommend the following item:
Electrolytic capacitor, 47 µF, 450 V (DC), -10/+30 %, can, Ø 25 mm, S47045025040
Order No.: 14D4183
Manufacturer: FTcap
per pc. 10.115 € *

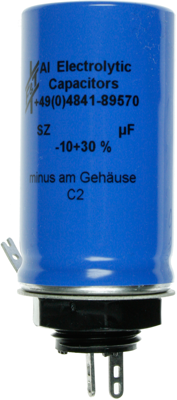

Electrolytic capacitor in aluminum can, type Standard.
With M 18 x 1.5 bushing mount
Rated voltage 450 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Capacity | 47 µF | |
| Rated voltage (DC) | 450 V | |
| Tolerance | -10/+30 % | |
| ESR (Equivalent Series Resistance) | 547 mΩ | |
| Ripple current | 800 mA | |
| Design | can | |
| Connection | soldering lug | |
| diameter | 25 mm | |
| Length | 40 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
