S10145030054 | FTcap
Electrolytic capacitor, 100 µF, 450 V (DC), -10/+30 %, can, Ø 30 mm, S10145030054
Unit Price (€ / pc.)
8.925 € *
Standard delivery time from the manufacturer is: 12 Weeks

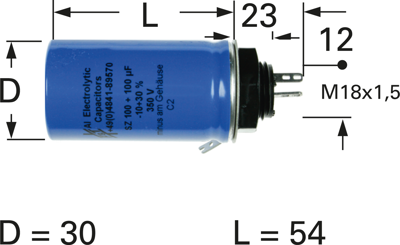

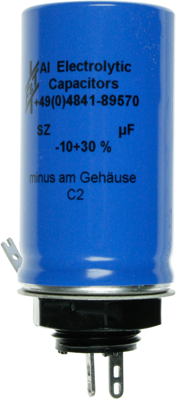

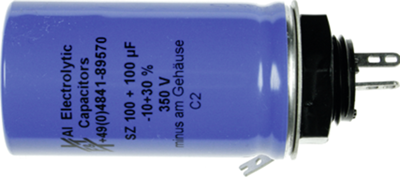

Electrolytic capacitor in aluminum can, type Standard.
With M 18 x 1.5 bushing mount
Rated voltage 450 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Ripple current | 800 mA | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Version | polar | |
| Connection | soldering lug | |
| diameter | 30 mm | |
| Rated voltage (DC) | 450 V | |
| Tolerance | -10/+30 % | |
| Capacity | 100 µF | |
| ESR (Equivalent Series Resistance) | 547 mΩ | |
| Design | can | |
| Length | 54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
