LFB47206335050 | FTcap
Electrolytic capacitor, 4700 µF, 63 V (DC), -10/+30 %, can, Ø 35 mm, LFB47206335050
Unit Price (€ / pc.)
9.4724 € *
Available: 149 pcs.
Total Price:
9.47 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4724 €
10 pcs.
8.3300 €
50 pcs.
7.7588 €
150 pcs.
7.4256 €
500 pcs.
7.0448 €
*incl. VAT plus shipping costs
Subject to prior sale

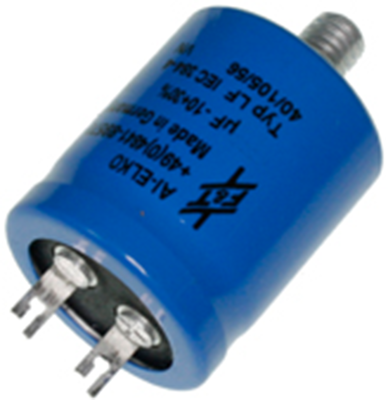

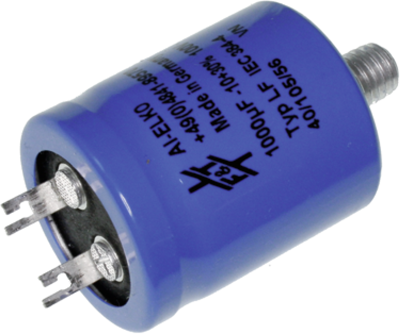

Electrolytic capacitor in aluminum can, type FTCAP LFB.
Polarized, with threaded mounting studs and solder lug terminals
Rated voltage 63 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Ripple current | 4 A | |
| Rated voltage (DC) | 63 V | |
| Connection | soldering lug | |
| Tolerance | -10/+30 % | |
| Design | can | |
| diameter | 35 mm | |
| ESR (Equivalent Series Resistance) | 32 mΩ | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Version | polar | |
| Length | 50 mm | |
| Capacity | 4700 µF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
