LFB47204030036 | FTcap
Electrolytic capacitor, 4700 µF, 40 V (DC), -10/+30 %, can, Ø 30 mm, LFB47204030036
Unit Price (€ / pc.)
9.5438 € *
Available: 83 pcs.
Next delivery: 500 pcs. on 2025-10-31
Total Price:
9.54 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5438 €
10 pcs.
8.4014 €
50 pcs.
7.8302 €
150 pcs.
7.4732 €
500 pcs.
7.1043 €
*incl. VAT plus shipping costs
Subject to prior sale

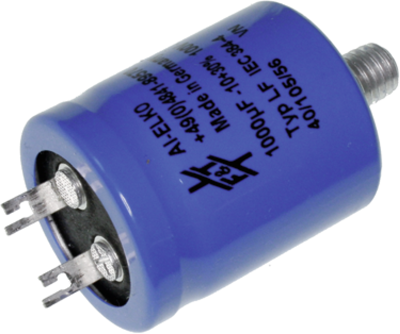

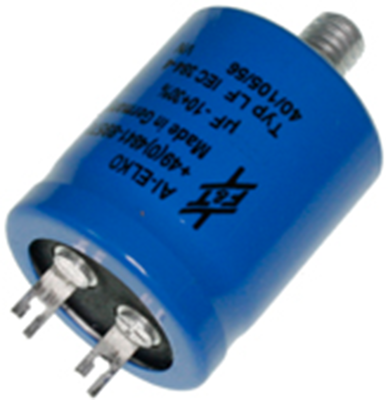

Electrolytic capacitor in aluminum can, type FTCAP LFB.
Polarized, with threaded mounting studs and solder lug terminals
Rated voltage 40 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 36 mm | |
| max. operating temperature | 85 °C | |
| Version | polar | |
| Connection | soldering lug | |
| diameter | 30 mm | |
| Capacity | 4700 µF | |
| Rated voltage (DC) | 40 V | |
| Tolerance | -10/+30 % | |
| min. operating temperature | -40 °C | |
| Design | can |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
